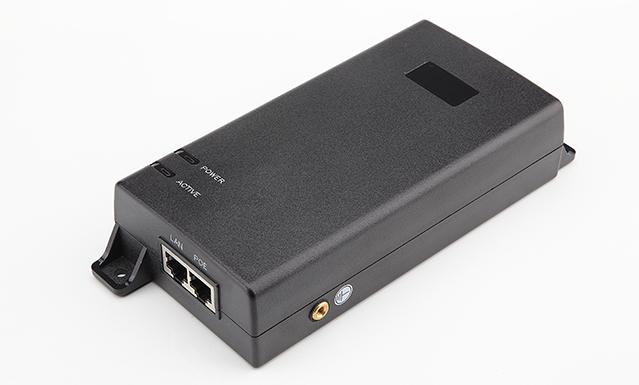

SC-PSE103G 60W POE
1. Input Voltage: 100~240VAC,50/60HZ,
2. Output: 55VDC/1100mA,power 60W,
Power pin: 4,5(+)/7,8(-)and3,6(+)/1,2(-) ,
Support IEEE802.3af/at/bt, Power supply mode:Passive
3. 60W power output
SC-PSE103G providing a maximum of 60watts of power through PoE port and ensuring safe operation of any standard PoE data terminal.
4. Transmission Rate: 10/100/1000Mbps
5. Single-port Midspan Suntury's
SC-PSE103G is a single port Midspan (PoE injector) offers a cost effective, IEEE 802.3af/at/bt compliant solution for IP phones, WLAN access points, network cameras and other IP terminal installations.
6. Plastic case & power plug integrated design
SC-PSE103G the plug-and-play installation, they are easily and cost effectively implemented leveraging an existing Ethernet infrastructure while at the same time providing the assurance of a future proof network.
7. Certification: CE,FCC
8. Size:165*82*38mm
- Product parameters
1. Input Voltage: 100~240VAC,50/60HZ,
2. Output: 55VDC/1100mA,power 60W,
Power pin: 4,5(+)/7,8(-)and3,6(+)/1,2(-) ,
Support IEEE802.3af/at/bt, Power supply mode:Passive
3. 60W power output
SC-PSE103G providing a maximum of 60watts of power through PoE port and ensuring safe operation of any standard PoE data terminal.
4. Transmission Rate: 10/100/1000Mbps
5. Single-port Midspan Suntury's
SC-PSE103G is a single port Midspan (PoE injector) offers a cost effective, IEEE 802.3af/at/bt compliant solution for IP phones, WLAN access points, network cameras and other IP terminal installations.
6. Plastic case & power plug integrated design
SC-PSE103G the plug-and-play installation, they are easily and cost effectively implemented leveraging an existing Ethernet infrastructure while at the same time providing the assurance of a future proof network.
7. Certification: CE,FCC
8. Size:165*82*38mm
